SKU Description

Detailed product descriptionShop the HPE Smart Choice purchase program: Our most popular servers, fully configured and ready to ship – now!

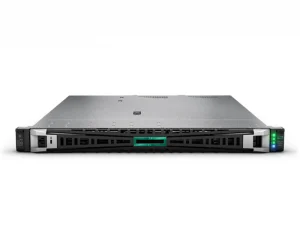

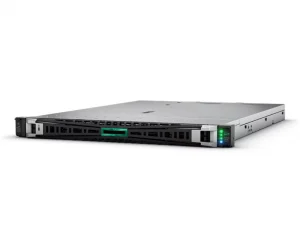

HPE ProLiant DL320 Gen11 server with one Intel® Xeon® Silver 4510 Processor, 64 GB (2×32 GB) Dual Rank Memory, one HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller, support for eight SFF drives, one HPE ProLiant DL3X0 Gen11 1U Standard Fan Kit, one HPE ProLiant DL3X0 Gen11 1U 2P Standard Fan Kit, two HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSDs, two HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kits, and a 3/3/3 warranty

Processor

Processor nameIntel® Xeon® Silver 4510 (12 core, 2.40 GHz, 30 MB L3, 150W)

Processor number1 processor included

Processor core available12 core

Processor speed2.40 GHz

Processor cache30 MB L3

Server Memory

Memory typeHPE DDR5 Smart Memory

Included memory64 GB (2×32 GB, 5600 MT/s)

Server Accelerator

AcceleratorsSupports up to two double-wide or four single-wide PCIe Accelerators (GPU), depending on model. See QuickSpecs for details.

Server Cooling

System fan features7x Standard Fans

Server Expansions

Expansion slotsMaximum, 2 PCIe Gen5 & 1 OCP 3.0 PCIe Gen5, for detail descriptions please refer to the QuickSpecs.

Server Form Factor

Form factor1U Rack

Server Controllers

Network controllerBroadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter

Storage controllerHPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

Server Drives

Included drives2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

Optical drive typeNone included, optional HPE 9.5mm SATA DVD-RW Optical Drive or HPE Mobile USB DVD-RW Drive

Server Power

Power supply type2x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Management Software

Infrastructure managementIncluded – HPE Compute Ops Management, HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download).
Optional – HPE iLO Advanced, and HPE OneView Advanced.

Security

SecurityUEFI Secure Boot and Secure Start support.
Intel® Software Guard Extensions (SGX) support.
Immutable Silicon Root of Trust.
Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits.

Warranty

Warranty3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpesc/public/docDisplay?docId=sd00004309en_us. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit: https://www.hpe.com/support.

Weights and Dimensions

Weight25.8 kg (56.879 lb)

Dimensions60 x 91.6 x 24.1 cm (23.62 x 36.06 x 9.49 in)
